DC Circuit Breakers for Solar PV and Energy Storage Applications
The JUTRION solar and energy storage DC circuit breaker series represents the pinnacle of electrical safety for modern renewable infrastructure. Specifically engineered to withstand the severe thermal cycling and persistent direct current arcs inherent in solar arrays and high capacity battery banks, our breakers provide precise thermal magnetic tripping. From compact din rail MCBs for residential solar strings to industrial grade MCCBs for commercial storage loops, JUTRION ensures continuous system uptime and absolute asset protection.
Flexible 1P to 4P Configurations
Available in 1P, 2P, 3P, and 4P pole structures to seamlessly match diverse wiring architectures, from localized low-voltage DC lines to high-voltage multi-phase isolated solar grounding networks.
Versatile 6A to 125A Range
Offers a precise rated current selection from 6A up to 125A, providing tailored, highly accurate overcurrent protection for small solar string monitoring lines and large commercial battery strings alike.
Advanced DC Arc Suppression
Equipped with specialized internal magnetic blowing structures and reinforced arc chutes to forcefully stretch and safely extinguish intense, continuous direct current electrical arcs before they cause damage.
Solar and Storage Safetys
Engineered specifically to withstand severe high-energy thermal cycling and bidirectional current flows during rapid charging and discharging phases in solar arrays and battery enclosures.

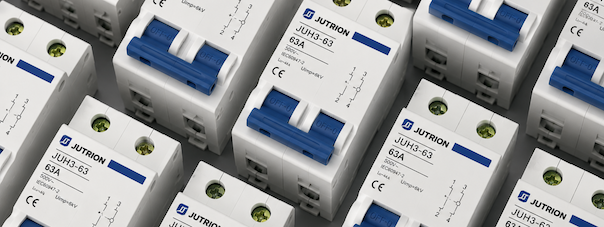

JUTRION Direct Current Miniature Circuit Breaker Catalog

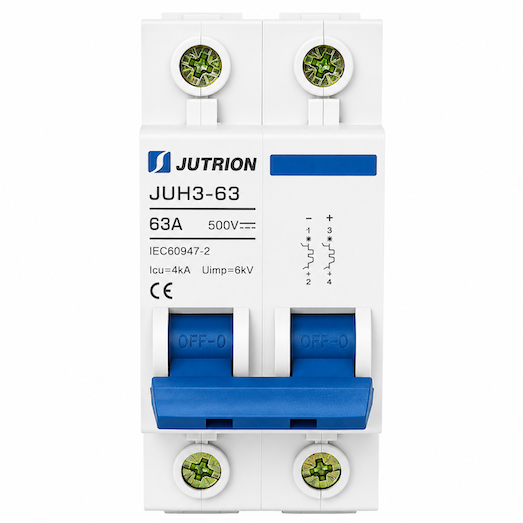

JUTRION JUH3 Series Miniature Circuit Breaker
Technical Parameters
Model Series：JUH3
Rated Current：6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Number of Poles：1P, 2P, 3P, 4P
Mounting Type：35mm Standard Din Rail Mounting
Precise Branch Circuit Calibration：Designed with highly sensitive internal thermal magnetic elements to provide accurate and reliable overcurrent calibration for low voltage control loops and smaller terminal branch loads.
Compact Modular Footprint：Features a standard modular width that seamlessly integrates into standard distribution boards, maximizing rail space in high density residential or commercial enclosures.
Long Mechanical Operating Life：Built with high wear resistant switching mechanisms to ensure reliable multi pole opening and closing operations over years of continuous infrastructure duty.

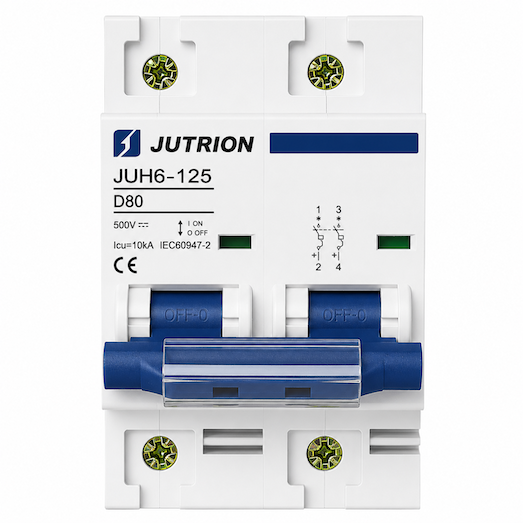

JUTRION JUH6 Series Miniature Circuit Breaker
Technical Parameters
Model Series：JUH6
Rated Current：80A,100A,125A
Number of Poles：1P, 2P, 3P, 4P
Mounting Type：35mm Standard Din Rail Mounting
High Current Heavy Duty Handling：Engineered specifically with reinforced internal copper busbars and contact structures to safely carry and switch heavy electrical loads up to 125A without excessive thermal buildup.
Enhanced Short Circuit Interruption：Equipped with enlarged arc extinguishing chambers and heavy duty grid plates to forcefully suppress and clear high energy fault currents in main incoming lines.
Robust Frame for Industrial Environments：Manufactured using premium thick flame retardant housing materials that maintain structural integrity and precision calibration under harsh, continuous industrial operation.

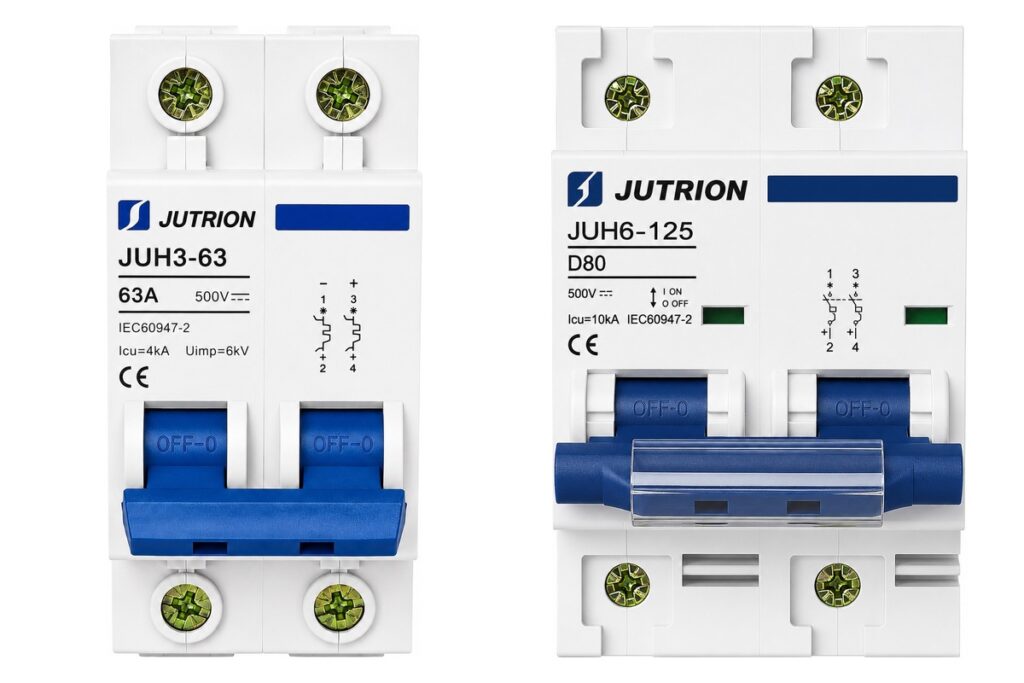

JUTRION JUH3 Series vs JUH6 Series
| Technical Parameters | JUTRION JUH3 Series | JUTRION JUH6 Series |
|---|---|---|
| Rated Current Range | 6A to 63A | 80A to 125A |
| Number of Poles Available | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P |
| Core Application Focus | Branch circuits, control circuits, small solar strings, and residential systems | Main incoming circuits, heavy machinery distribution, and commercial energy storage systems |
| Internal Structural Design | Compact modular design with precision thermal-magnetic tripping components | Heavy-duty frame with reinforced copper conductors and enlarged arc-extinguishing chambers |
| Mounting Method | 35 mm standard DIN-rail mounting | 35 mm standard DIN-rail mounting |
| Primary Engineering Benefit | Maximizes DIN-rail space in high-density distribution enclosures | Safely switches higher currents while reducing abnormal internal heat buildup |
JUTRION – A HIGH-QUALITY DC MCB SUPPLIER
JUTRION DC MCB Selection Guide and Ordering Criteria
To ensure optimal safety, system uptime, and complete code compliance for your direct current infrastructure, please follow these four critical technical criteria when selecting your JUTRION miniature circuit breaker series:
Determine System Operating Voltage
Criteria: The rated operational voltage of the breaker must be equal to or greater than the maximum open circuit voltage of your DC system.
Selection: For low voltage control loops, use standard configurations. For solar PV strings or high voltage battery networks approaching 1000V DC, select multi pole series designed specifically for high voltage arc suppression.
Match the Continuous Rated Current
Criteria: Select a rated current that handles continuous full load operation without nuisance tripping, while providing rapid thermal protection during genuine overcurrent events.
Selection: For light branch circuits, instruments, and monitoring lines, select the JUH3 Series (6A to 63A). For heavy incoming lines, main battery feeds, and large power distribution panel tracking, deploy the JUH6 Series (80A to 125A).
Select the Correct Pole Configuration for Grounding
Criteria: The number of poles determines the total voltage handling capacity and physical isolation method of the positive and negative lines.
Selection: Use 1P or 2P configurations for lower voltage systems or single pole grounded networks. Deploy 3P or 4P configurations for ungrounded floating systems and high voltage renewable loops to simultaneously break both polarities for maximum safety during maintenance.
Confirm Ordering Codes and Certifications
Criteria: Standardize your procurement by specifying exact model parameters, terminal tunnel dimensions, and required international low voltage compliance certificates.
Selection: Provide our sales engineering desk with your specific trip curves, accessories requirements (such as shunt trips or auxiliary contacts), and mounting dimensions to receive a finalized technical drawing and formal batch quotation.
FREQUENTLY ASKED QUESTIONS ABOUT DC MCBS
What is a DC MCB, and what is the difference between a DC MCB and an AC MCB?
A DC MCB is a specialized miniature circuit breaker engineered safely to interrupt overcurrents and short circuits in direct current networks. The critical difference lies in arc suppression. Alternating current naturally passes through a zero-voltage crossing point fifty or sixty times a second, which helps extinguish the electrical arc. Direct current stays at a constant, persistent voltage, meaning the arc never crosses zero and is exceptionally difficult to put out. Because of this, a DC MCB must contain intensive internal magnets and dedicated cooling structures to forcefully pull and extinguish the continuous direct current arc, whereas a standard AC MCB lacks these strong magnetic blowing elements and will fail catastrophically if applied to high-voltage DC lines.
How do I choose between the JUTRION JUH3 and JUH6 series for my project?
Selection depends entirely on your system current load requirements. The JUH3 series is rated from 6A to 63A, making it ideal for lighter localized terminal distribution, monitoring lines, control loops, and small residential solar strings. The JUH6 series handles larger heavy duty power paths from 80A up to 125A, incorporating beefier copper busbars and deeper frames to manage main incoming feeds and industrial machinery cabinets without dangerous thermal buildup.
Can I mix different wire sizes or copper types in the breaker connection terminals?
No, doing so introduces major electrical risks in high-power direct current setups. The tunnel connection terminals on our JUH3 and JUH6 series are precision engineered to apply even mechanical pressure across a uniform conductor cross-section. Mixing wires of different diameters or combining rigid solid wires with flexible stranded copper wires inside a single tunnel will create uneven contact pressure. This leads to loose gaps, high contact resistance, localized heating, and eventually terminal burnouts under continuous direct current loads. For total safety, always use identical wire sizes and apply proper crimped ferrule terminals to stranded copper lines.
What causes a DC MCB to trip normally, and how can I troubleshoot it?
A JUTRION DC MCB will trip for two standard safety reasons: thermal overload or a magnetic short circuit. A thermal trip happens slowly when downstream equipment draws slightly more current than the breaker rating over time, often caused by adding too many battery modules or load changes. A magnetic trip happens instantly due to a massive short circuit fault. To troubleshoot, always turn off the main power loop first. Inspect the line cables for insulation wear or loose connection terminals, check if the actual equipment power matches the rated continuous current of the breaker, and let the unit cool down for a few minutes before attempting a reset.
NEED THE RIGHT DC MCB FOR YOUR APPLICATION?
Tell us your system voltage, rated current, number of poles and application requirements. JUTRION will help you select a reliable and cost-effective DC MCB solution for solar PV, energy storage, DC distribution and other direct-current systems, with flexible OEM/ODM support for your market and project needs.
