AC & DC Isolator Switch Manufacturer
JUTRION provides AC switch-disconnectors and PV DC isolator switches for industrial power distribution and solar photovoltaic systems. Our products support safe load switching, reliable circuit isolation, multiple pole configurations, and a wide range of current and voltage ratings, with OEM/ODM options available for different project requirements.
Compliant with Industry Standards
What Is an Isolator Switch?
An isolator switch is an electrical device used to disconnect a power supply and provide a safe isolation point for maintenance, inspection, or equipment replacement. It is commonly used in switchboards, industrial equipment, and solar PV systems.
Its main function is electrical isolation rather than overload or short-circuit protection, so it is usually used together with fuses or circuit breakers. Isolators are available for both AC and DC applications, while devices capable of switching normal load current are more accurately called switch-disconnectors.

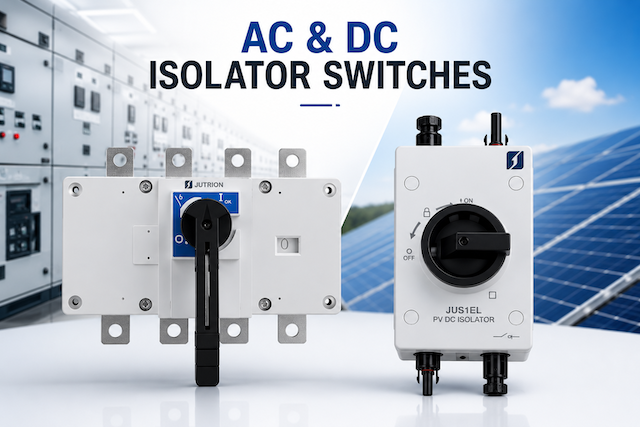

JUTRION AC & PV DC Isolator Switches
JUHGL Series AC Switch-Disconnector
High-Current Load Switching
Available with rated current options from 63A to 3200A for main switchboards and industrial distribution systems.
3P and 4P Configurations
Available in 3-pole and 4-pole versions to meet different three-phase distribution and neutral switching requirements.
400V / 690V AC Applications
Designed for low-voltage AC distribution systems with rated operating voltages up to 690V AC.
IEC 60947-3 Compliant Design
Designed for AC-22A / AC-23A utilization categories, providing reliable load switching and electrical isolation.
JUS1EL Series PV DC Isolator Switch
Up to 1500V DC
Available for 600V, 1000V, and 1500V DC photovoltaic systems, depending on the selected configuration.
IP65 / IP66 Outdoor Protection
Weather-resistant enclosure options protect the switch against dust, rain, and demanding outdoor conditions.
16A–63A Current Options
Rated current options from 16A to 63A are available for different PV string and inverter applications.90V AC.
DC-PV2 Switching Performance
Designed according to IEC 60947-3 with DC-PV2 utilization category options for reliable PV circuit isolation.
RELIABLE ISOLATION STARTS WITH THE RIGHT SWITCH. JUTRION AC SWITCH-DISCONNECTORS AND PV DC ISOLATOR SWITCHES PROVIDE SAFE CIRCUIT ISOLATION, DEPENDABLE LOAD SWITCHING, AND FLEXIBLE CONFIGURATIONS FOR INDUSTRIAL DISTRIBUTION AND SOLAR POWER SYSTEMS.
JUTRION Isolator Switch Key Features
Reliable Circuit Isolation
Provides a dependable disconnection point between the power source and downstream equipment for safer inspection, maintenance, replacement, and emergency shutdown.
AC and PV DC Applications
JUTRION offers AC switch-disconnectors for industrial power distribution and PV DC isolator switches for solar strings, inverters, combiner boxes, and other photovoltaic applications.
Flexible Ratings & Configurations
Supports multiple current ratings, voltage levels, and pole configurations to meet different industrial distribution and solar photovoltaic system requirements.
Flexible OEM/ODM Customization
Supports customized product ratings, pole configurations, labels, logos, packaging, and enclosure options for different markets and project requirements.

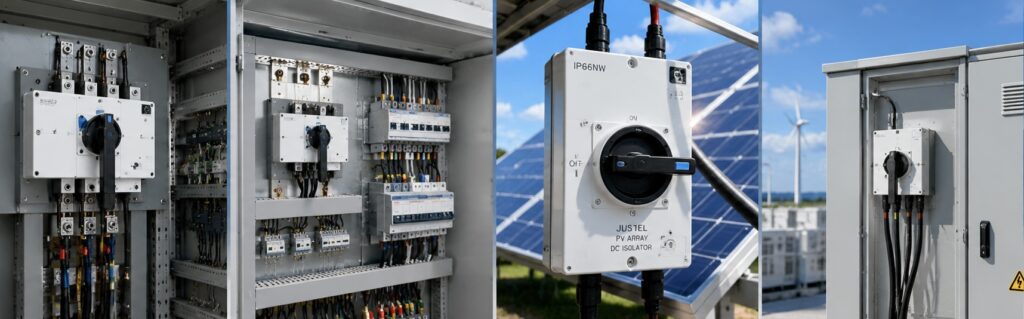

AC vs PV DC Isolator Switches: Differences & Applications
AC switch-disconnectors and PV DC isolator switches are designed for different electrical environments. AC models are mainly used in industrial and commercial distribution systems, while PV DC isolators are built for solar strings, inverters, and outdoor photovoltaic installations. The table below highlights their key differences in voltage, application, installation, utilization category, and enclosure protection.
| Comparison | AC Switch-Disconnector | PV DC Isolator Switch |
|---|---|---|
| Current Type | AC | DC |
| Typical Voltage | 400V / 690V AC | 600V / 1000V / 1500V DC |
| Main Application | Industrial switchboards | Solar PV systems |
| Typical Installation | Inside distribution cabinets | Near PV arrays or inverters |
| Utilization Category | AC-22A / AC-23A | DC-PV2 |
| Enclosure | Panel-mounted | IP65 / IP66 outdoor enclosure |
Common Questions About AC and PV DC Isolator Switches
What Is the Difference Between an Isolator Switch and a Circuit Breaker?
An isolator switch is mainly used to disconnect and isolate a circuit for safe maintenance, while a circuit breaker automatically interrupts overload and short-circuit faults.
What Is the Difference Between an AC Isolator and a DC Isolator?
AC isolators are designed for alternating-current distribution systems, while DC isolators use specialized arc-extinguishing structures for solar PV and other direct-current circuits.
How Do I Select the Correct Isolator Switch for a Solar PV System?
Confirm the maximum DC voltage, operating current, number of poles, utilization category, installation location, and required IP protection level.
Can an Isolator Switch Be Operated Under Load?
A standard isolator is mainly intended for circuit isolation and may not be suitable for load switching. A switch-disconnector rated for the relevant utilization category can safely switch normal load current.
What Is the Difference Between an Isolator Switch and a Circuit Breaker?
Normally, isolator switches do not provide automatic overload or short-circuit protection and should be used together with fuses or circuit breakers.
What AC and PV DC Isolator Switches Does JUTRION Supply?
JUTRION supplies JUHGL Series AC switch-disconnectors for industrial distribution and JUS1EL Series PV DC isolator switches for solar strings, inverters, and outdoor PV systems.
Does JUTRION Provide OEM/ODM Isolator Switch Services?
Yes. JUTRION supports customization of current ratings, voltage levels, pole configurations, product labels, logos, packaging, and enclosure options according to market and project requirements.
NEED THE RIGHT ISOLATOR SWITCH FOR YOUR PROJECT?
JUTRION provides AC switch-disconnectors and PV DC isolator switches for industrial distribution and solar power systems. Share your required voltage, current, pole configuration, application, and quantity, and our team will recommend a suitable model and provide a competitive quotation.
