MCCB Motorized Operating Mechanism: Control, Selection and Retrofit Guide

Quick Answer: What Does an MCCB Motor Operator Do?

An MCCB motorized operating mechanism, also called an MCCB motor operator, is an electrical actuator that moves a compatible moulded case circuit breaker between its mechanical states on command. Depending on the breaker and the matched mechanism it can open, close, and reset the breaker after a trip. It is the only breaker accessory that can close a breaker remotely — a shunt trip and an undervoltage release can only open one.

A control room sends a CLOSE command to a feeder breaker and nothing happens. The usual first assumption is a failed motor. The motor is often healthy: the breaker may still be in the TRIPPED state, a selector may be in MANUAL, a close permissive may be missing, or the control supply may collapse during the operation.

That is the central point of this guide. A motor operator is not an electric hand that turns a handle. It is one link in a chain: the automation system issues a command, permissive logic decides whether it is allowed, the mechanism moves the breaker, and auxiliary contacts confirm the result. If any link is left unspecified, “remote MCCB operation” is not a complete function.

A motor operator is also not a protective device. It does not sense current, does not trip on a fault, and does not raise the breaker’s I_cu or change its trip unit. Nor does it replace a contactor: a breaker with a motor operator is built for infrequent operation, not for the thousands of daily cycles a motor circuit demands.

Use this guide in three passes:

1. Confirm whether the project needs remote opening only, or remote reset and closing as well.
2. Check mechanical compatibility, control voltage, pickup demand and cable voltage drop.
3. Define permissives, feedback, interlocking and behaviour after a protective trip.

Specification at a Glance

Decision	What settles it	Where buyers go wrong
Accessory type	Whether remote closing is required, not just tripping	Ordering a shunt trip for “remote control”
Required motions	Open only, or open–reset–close after a trip	Assuming “remote close” includes reset from TRIPPED
Mechanical fit	Breaker series, frame, poles and mounting — from the nameplate	Matching on ampere rating alone
Control voltage	Volt drop over the actual cable run	Choosing 24 V DC out of habit for a long run
Control supply size	Combined pickup (inrush) VA plus the project power-supply margin	Sizing on the holding load
Feedback	Position contact plus a separate trip/alarm contact	One auxiliary contact for everything
Duty	Operations per year against rated endurance	Using a breaker where a contactor belongs

Remote Operation Begins with Three Breaker States, Not Two

A manual switch is ON or OFF. An MCCB has a third state that governs every remote-control design: TRIPPED. A close command cannot treat a tripped breaker as though it were simply open.

Observed state	Meaning for the control system	Permitted next action	Feedback required
ON	Main contacts closed	Hold, or issue OPEN when required	Position contact
OFF	Contacts open, mechanism ready to close	CLOSE only when permissives are true	Open-position indication and close-permissive status
TRIPPED	A protective or remote trip has operated	Investigate, reset if authorised, then re-evaluate closing	Trip/alarm indication distinct from normal OFF
Moving or unconfirmed	Mechanism operating, stalled, or feedback inconsistent	Block further commands until timeout and diagnosis	Command timer plus position comparison

Reset Travel Is a Separate Mechanical Requirement

After a protective trip, many breakers require the handle to move beyond the normal OFF position before the mechanism resets. A motor operator intended only for ON/OFF switching may not provide that travel. Specify “remote reset after trip” explicitly rather than assuming it is included in “remote close”.

Reset also changes the feedback logic. An alarm contact may clear when the mechanism resets, while an OFF auxiliary contact may already show an open main-contact state. If the controller uses OFF alone as proof, it can issue CLOSE while the breaker is still mechanically tripped.

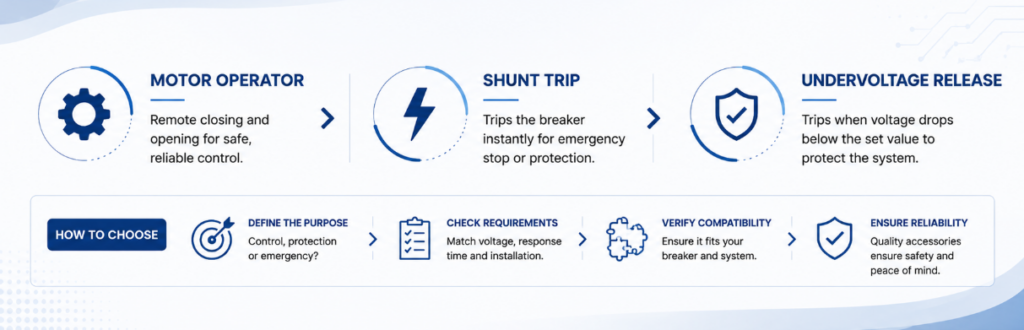

Motor Operator, Shunt Trip or Undervoltage Release: Match the Accessory to the Job

Remote control is often over-specified because these accessories are treated as interchangeable. They are complementary, and the most expensive misunderstanding in the category is buying a shunt trip and discovering it cannot close the breaker again.

Capability	Motor operator	Shunt trip (MX)	Undervoltage release (MN)	Auxiliary contact (OF)
Closes the breaker remotely	Yes, when the matched design permits	No	No	No
Opens the breaker remotely	Yes	Yes	Yes, on supply loss	No
Resets after a trip	Model-specific — confirm	No	No	No
Reports breaker position	Not by itself	No	No	Yes
Needs a continuous supply	No — draws only while operating	No — energised only to trip	Yes — held energised	No — volt-free
On loss of control supply	Breaker holds state; no remote control	Cannot trip	Trips — inherently fail-safe	Contact state unchanged
Typical role	Remote open, reset and close actuator	Fire-alarm or emergency trip path	Fail-safe trip and close permission	Command confirmation and interlocking

Read the last two rows together. A shunt trip needs a healthy control supply to do its job; an undervoltage release does its job precisely when the supply is lost. Choose between them by asking what should happen if the control supply itself fails. A motor operator answers a different question: who closes the breaker when nobody is standing in front of it.

A motor operator may open the breaker mechanically and the project may still require a shunt trip, because protection or emergency circuits often need an independent, defined trip path. They are fitted together, not chosen between.

How a Motor Operator Actually Moves the Breaker

The command reaches the mechanism, a geared motor runs, and the breaker changes state. What happens between those points varies by design, and the difference affects command duration, timing and what the controller should expect after a power loss.

Direct drive. The motor moves the operating interface through the complete stroke while it is energised. The command must last long enough for the full travel, and the actuator movement broadly follows the breaker handle, which makes the operation easy to observe during commissioning.

Stored energy. The motor charges a spring, and the spring is then released to move the contacts in one fast action. This decouples contact speed from motor speed, which is what allows the contacts to close quickly enough to limit pre-arcing. The charging sequence and the contact operation are two separate events, and the controller should allow for both.

Neither approach is universally better. The decisive question is whether the complete breaker-and-mechanism assembly performs the required open, reset and close sequence on the available control supply and within the project timing. In both cases the motor stops once the operation completes, which is why a motor operator presents a large momentary demand and effectively no standing load.

Manual operation must remain defined either way. The current JUTRION portfolio page lists a built-in Auto/Manual switch for its motorised operating mechanism range. Confirm the ordered model’s mechanical engagement, whether MANUAL blocks remote commands, whether it disconnects motor power, and whether the controller receives selector-position feedback. A manual selector is not an isolation device and must be coordinated with the panel’s locking procedure.

---

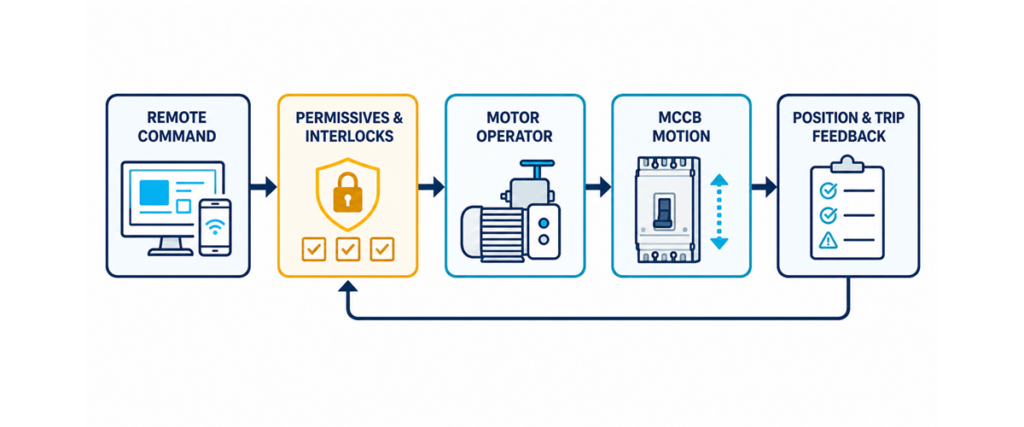

Build the Command, Permission, Motion and Feedback Chain

A dependable motor-control circuit has four linked functions. Each needs a defined input, output, failure response and commissioning test.

Command

• The command may come from local pushbuttons, a PLC output, a BMS relay, a transfer controller or a protection relay. Define whether the mechanism expects a pulse, a maintained signal, or separate OPEN and CLOSE inputs. Do not infer the arrangement from the control voltage. Commands must be mutually exclusive: if OPEN and CLOSE can be energised together through relay overlap or a software error, the circuit must resolve the conflict predictably.

Permission

• A command is a request, not authority to energise a circuit. Close permissives typically include healthy source voltage, no lockout active, breaker not in maintenance, alternate source open, trip cause cleared, and the selector in REMOTE. Opening usually has fewer permissives, but the required logic still belongs in the project cause-and-effect document rather than in an installer’s judgement.

Motion

• Once permitted, the mechanism draws control power and moves the breaker. The supply must hold its voltage through that transient demand. A supply that measures correctly at rest can dip when the motor starts, leaving the operation incomplete. Allow the manufacturer-declared operating time plus a supervision margin, and never issue rapid repeated commands to force completion.

Feedback

• Confirm the physical state after the command. A position contact indicates ON or OFF; a separate alarm contact distinguishes a protective trip from a commanded opening. If the command expires without the expected state, raise a failure-to-open or failure-to-close alarm and block retries. That turns a silent failure into actionable diagnostic information.

---

Size the Control Supply on the Pickup Surge, Not the Holding Load

This is the calculation most often skipped, and it separates a panel that works from one that fails intermittently. Accessory coils draw two very different currents.

• Pickup (inrush) VA — the brief surge as the coil energises and the motor starts. It sets the momentary capability the supply needs and the voltage dip every other device on that supply will see.
• Holding VA — the continuous draw once energised. It sets the steady thermal load.

A supply that comfortably carries the holding load but sags during pickup will let the coil drop out, or prevent it pulling in at all. The device is not faulty; the supply is undersized for a demand lasting a fraction of a second.

Peak (pickup) demand:

Peak VA = Σ (pickup VA × quantity)

Peak current at the coil voltage:

I_peak = Peak VA / V

Steady (holding) demand:

Steady VA = Σ (holding VA × quantity)

Recommended supply rating:

Illustrative first-pass supply = Peak VA × 1.25

The 1.25 multiplier is the illustrative allowance used by the JUTRION calculator, not a universal requirement stated by IEC 60947-2. Replace it where the power-supply manufacturer, control-transformer data, project standard, duty, temperature, or simultaneous-operation study requires a different margin.

Where several accessories can energise together — a motor operator running its cycle while an undervoltage release is held in — add their pickup figures. That combination, not any single device, is the worst case. The JUTRION breaker accessory power calculator runs these equations directly.

Accessory	Pickup (VA)	Holding (VA)	Duty
Motor operator	Approx. 300–600	0	Draws only during the operating cycle
Shunt trip (MX)	Approx. 100–300	0	Momentary; energised only to trip
Undervoltage release (MN)	Approx. 200–350	Approx. 5–10	Continuously energised
Auxiliary / alarm contact	Negligible	Negligible	Volt-free contact

These are the illustrative default ranges published by the JUTRION calculator, not IEC values or ordered-product ratings. Coil demand varies by series, frame and AC or DC type, so replace every default with the datasheet figure for the device actually ordered. The table is useful for understanding pickup versus holding duty, not for issuing a final transformer or power-supply specification.

Check the Volt Drop Before Choosing a 24 V DC Coil

Low-voltage DC is often specified for compatibility with a PLC rail or a UPS-backed control supply. For a motor operator it deserves a second look: the same power at a lower voltage means proportionally more current, and volt drop rises with it.

For a two-wire DC control circuit:

ΔU = 2 × L × I × ρ / A

Where ΔU is volt drop in V, L is the one-way run in m, I is the operating current in A, ρ is copper resistivity (about 0.0175 Ω·mm²/m at 20 °C, rising with temperature) and A is conductor area in mm². Rearranged for the permissible run:

L_max = ΔU × A / (2 × I × ρ)

For an illustrative comparison, assume a mechanism with a 450 VA pickup demand and allow a 10% drop. The 450 VA value is a constructed input within the calculator’s typical range, not a JUTRION model rating:

Coil voltage	Pickup current	Permitted drop	Max. run on 2.5 mm²	Max. run on 6 mm²
DC 24 V	18.8 A	2.4 V	Approx. 9 m	Approx. 22 m
DC 110 V	4.1 A	11 V	Approx. 192 m	Approx. 460 m
AC 220 V	2.0 A	22 V	Approx. 768 m	Approx. 1844 m

Under these specific assumptions, the 24 V DC option on 2.5 mm² conductor reaches the 10% drop allowance at roughly nine metres. This is not a universal cable-length limit: the result changes directly with the ordered mechanism’s pickup demand, conductor size, temperature, terminal losses, and permitted operating-voltage range. For long control-room runs, compare a larger conductor, a local supply at the breaker, and a higher control voltage.

This is why accessory coils are offered across such a wide voltage range. JUTRION motorised operating mechanisms are available in AC 110 V, AC 220 V and AC 400 V, and in DC 24 V, DC 36 V, DC 110 V and DC 220 V, so the control voltage can be chosen to suit the cable run rather than the cable being sized around a voltage chosen by habit.

A Worked Example: 400 A Feeder with a Remote Motor Operator

The application. A 400 A MCCB feeds a pumping station from a control room about 60 m away. The breaker must be opened, reset and closed remotely. An undervoltage release is fitted so the breaker trips on loss of the control supply.

Step 1 — list what can energise together. The motor operator runs its cycle while the undervoltage release is held in. Both sit on the same control supply, so both count.

Step 2 — define illustrative inputs. Assume a motor operator at 450 VA pickup / 0 holding and an undervoltage release at 275 VA pickup / 7 VA holding. These constructed values sit within the JUTRION calculator’s illustrative ranges; replace them with the ordered accessory datasheets.

Step 3 — peak demand.

Peak VA = (450 × 1) + (275 × 1) = 725 VA

Step 4 — steady demand.

Steady VA = (0 × 1) + (7 × 1) = 7 VA

The ratio is the lesson: the momentary demand is more than a hundred times the continuous one.

Step 5 — size the supply.

Illustrative supply = 725 × 1.25 = 906 VA

Step 6 — check the voltage against the run. At DC 24 V the peak current is 725 / 24 = 30.2 A, and holding a 10 % drop over 60 m would need roughly 26 mm² — impractical for a control circuit. At AC 220 V the peak is 725 / 220 = 3.3 A and 2.5 mm² is comfortable with margin.

Illustrative result: AC 220 V is the more practical option for the assumed 60 m run. A control transformer around 1 kVA and 2.5 mm² conductors are the first-pass result under the stated inputs; final selection requires the transformer’s short-time regulation, protection, installation method, temperature, actual accessory data, and permitted voltage range. At DC 24 V, this example points toward a local supply or a substantially larger conductor.

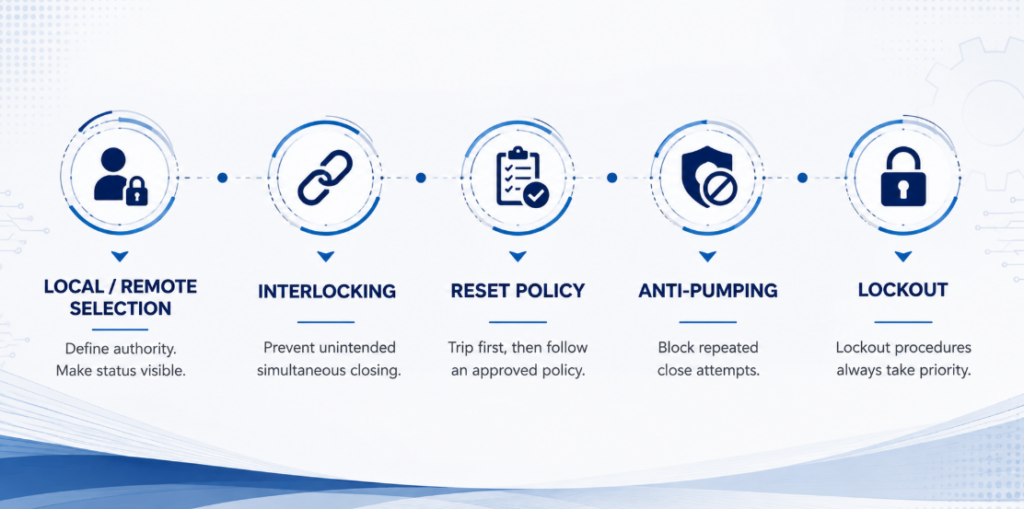

Automatic Closing Needs Permissives, Interlocks and a Reset Policy

Remote opening is straightforward. Remote closing can energise damaged equipment, restart machinery, parallel sources, or expose people who believed a circuit would stay open. The close path deserves more engineering attention than the motor.

Local/remote selection. A selector defines who has authority. Its state should be visible to the controller, so a blocked command produces a clear “local mode” indication rather than a generic failure alarm.

Source interlocking. Where two breakers select between utility, generator or bus sources, logic must prevent unintended simultaneous closing unless the system is designed to parallel. Mechanical interlocking adds a physical layer, but its compatibility must be verified with the chosen breakers and mechanisms.

Reset and reclose policy. A protective trip should normally block automatic closing until the cause is classified. Some systems permit one supervised reclose for a defined transient; others require investigation after every trip. The motor operator executes the approved policy — it should not create one by default.

Anti-pumping. If a CLOSE command remains present while the breaker trips, the system must not cycle between closing and tripping. The control architecture should block repeated attempts until the command is removed and a new authorised sequence begins.

Maintenance lockout. Software inhibition is not a substitute for an approved lockout procedure. A remote system can issue commands unexpectedly during testing, communication recovery or a software restart.

Apply the Logic to Three Common Architectures

Generator and Source Transfer

Two breakers, each with a motor operator, are switched by a transfer controller so that only one is ever closed. A motor operator is essential because the controller must close a breaker, not merely trip one.

The controller opens the active source, confirms it is open through position feedback, and only then permits the alternate source to close. Interlocking is mandatory. The control supply must also be available from whichever source is live — a detail easily missed when the control transformer is fed from the utility side alone.

Key distinction: a motor operator supplies motion; it does not by itself make two breakers a transfer switch.

Unattended Site or Remote Substation

A breaker in a rooftop plant room, a pumping station or an unmanned substation is motorised so a trip can be investigated and supply restored without a site visit. The cable run is usually long, which makes the control-voltage decision the governing constraint rather than the mechanism. Fit an alarm contact alongside the position contact so the control system can distinguish a fault trip from a commanded opening before anyone attempts a remote reset.

Load Shedding and Scheduled Switching

An energy-management system opens non-critical feeders when generator capacity or site demand reaches a limit, then restores them in stages to avoid a second demand peak. Each feeder needs a priority, a minimum off time, a close permissive and a failure alarm.

One opening and one closing movement per day totals about 10,950 movements over fifteen years. Confirm how the ordered mechanism defines an operation or cycle before comparing this figure with endurance. Frequent routine switching may belong to a contactor, with the breaker left to provide protection and isolation.

Retrofitting a Motor Operator to a Breaker Already Installed

Most writing on this subject assumes breaker and accessory are specified together. A large share of real enquiries are the opposite: the breaker has been in service for years, the requirement for remote operation appeared later, and the question is whether a mechanism can be added without replacing it.

Some installed MCCBs can accept a retrofit operator without replacing the breaker. Where the approved mechanism mounts on the front, the current path and trip settings may remain unchanged, but the panel must be isolated and the breaker condition checked before installation. Three things decide whether the retrofit is practical:

• Series and frame. The mechanism is matched to the specific breaker, not to its ampere rating. Two 250 A breakers from different series will usually need different mechanisms.
• Front clearance. A motor operator adds depth. Check the distance to the enclosure door and to any escutcheon before ordering.
• Control supply. An existing panel may have no control transformer or DC supply, or one without the capacity calculated above. On retrofits this is more often the real constraint than the mechanism.

Brand is not an automatic barrier. Model-specific adaptation can cover approximately 99% of mainstream breaker designs, with the mounting interface, terminal layout and coil voltage matched to the target breaker. This percentage describes the breadth of an adaptation programme; it does not mean that one universal mechanism fits every MCCB.

Compatibility check: record the breaker manufacturer, series, frame and number of poles, then provide clear nameplate and front-view photographs. These inputs allow the mounting interface and operating travel to be checked before a mechanism is selected.

A serviceable breaker may then gain remote operation without replacement, subject to its condition, available space, required documentation and an approved mechanism match.

Check the Supporting Accessory Options

A complete MCB and MCCB accessory range may include motorised operating mechanisms, shunt trips, undervoltage releases, auxiliary contacts and alarm contacts. The table below compares their control-side functions; mechanical fitment still has to be confirmed against the breaker nameplate.

Accessory	Control voltage options	Configuration	Rated endurance
Motorised operating mechanism	AC 110 V, AC 220 V, AC 400 V; DC 24 V, DC 36 V, DC 110 V, DC 220 V	Built-in auto/manual selector	10,000 remote operations
Shunt trip (MX / ST)	AC 230 V, AC 400 V; DC 24 V	Instantaneous tripping	4,000 tripping operations
Undervoltage release (MN / UVR)	AC 230 V, AC 400 V; DC 24 V, DC 48 V	Drop-out at 35 %–70 % Un	4,000 tripping operations
Auxiliary contact (OF)	Volt-free	1 NO + 1 NC, or 2 NO + 2 NC	10,000 electrical cycles
Alarm contact (SD)	Volt-free	1 NO + 1 NC, or 2 NO + 2 NC	10,000 electrical cycles

The wide voltage range lets the control supply follow the installation. Inside one switchboard, DC 24 V can integrate conveniently with PLC logic; on a long run, a higher control voltage may reduce conductor demand.

The published portfolio figures list 10,000 remote operations for the mechanism category and 4,000 tripping operations for the trip accessories. Confirm how the ordered model defines and tests an operation before comparing it with the project duty. Use a contactor where frequent routine switching is required.

Avoid the Eight Mistakes That Cause Motor Operator Failures

Mistake	Consequence	Prevention
Specifying a shunt trip for “remote control”	Trips remotely, but must be closed by hand at the panel	Confirm first whether remote closing is required
Assuming remote close includes reset from TRIPPED	The breaker will not close after a fault trip	State “remote reset after trip” explicitly in the specification
Sizing the control supply on holding VA	The mechanism fails to pull in, intermittently	Size on combined pickup demand and apply the documented project margin
Choosing DC 24 V for a long run	Volt drop prevents reliable operation; misdiagnosed as a faulty mechanism	Check volt drop at the actual run before fixing the voltage
Ignoring simultaneous accessory operation	Supply adequate for one device sags when two energise	Add the pickup VA of everything that can energise together
Matching on ampere rating alone	The accessory cannot be mounted, or fouls the door	Confirm series, frame and clearance from the nameplate
Omitting a separate trip/alarm contact	The system cannot tell a fault trip from a commanded opening, and may reclose onto a fault	Fit position and alarm contacts and wire both
Leaving the selector in MANUAL after commissioning	Remote commands are silently ignored	Verify and record the selector position at handover

Diagnose Failures by Following the Control Chain

Symptom	Likely areas	Evidence to collect	Safe next action
Motor does not run	Missing supply, selector in MANUAL, command absent, permissive open, control fuse	Voltage at supply and command terminals; selector and PLC status	Trace command and permission before replacing anything
Motor runs, breaker does not change state	Mechanical mismatch, misalignment, breaker still TRIPPED, incomplete reset	Breaker indication; manual movement; alignment	Isolate control power and inspect the mechanical interface
Breaker reaches position but PLC shows failure	Wrong auxiliary contact, NO/NC interpretation, broken feedback wire, timer too short	Contact state at breaker and controller; measured operating time	Correct the feedback logic rather than extending the timer blindly
Control voltage collapses during movement	Undersized supply, long run, small conductor, simultaneous loads	Minimum voltage at the mechanism during operation	Correct the supply circuit using model-specific data
Works locally, not from the control room	Volt drop over the long run, loose terminal at a marshalling point	Recalculate drop at actual size and length; inspect terminations	Resize the conductor or change the control voltage
Breaker repeatedly closes and trips	Fault not cleared, maintained close command, missing anti-pumping logic	Trip indication, command history, protection events	Block reclosing and investigate the protected circuit

Do not begin diagnosis by bypassing permissives or forcing the handle. Identify first which of the four functions failed — command, permission, motion or feedback. That keeps a control-logic fault from being mistaken for a mechanical failure, and prevents repeated operation against a blocked or tripped breaker.

Record These Parameters Before Selecting a Mechanism

1. A photograph of the breaker nameplate — this settles brand, series, frame and rating in one step
2. Breaker brand, series and model, if the nameplate is not accessible
3. Number of poles and mounting orientation
4. Functions required: remote open, remote reset after trip, remote close, or all three
5. Control voltage available, AC or DC, and its source
6. Cable run from the control supply to the breaker
7. Command method: pulse, maintained, or separate OPEN and CLOSE inputs
8. Other accessories fitted at the same time
9. Feedback contacts required for position and trip cause
10. Expected operations per day or per year
11. What must happen if the control supply fails
12. Enclosure depth and door clearance
13. Destination market and the documentation required for the project

What the Technical Submittal Should Confirm

A useful technical submittal should identify the exact mechanism matched to the stated breaker rather than merely repeat the breaker current. Check the control-voltage designation, opening and closing input arrangement, reset capability, pickup power or current, operating time, mechanical endurance, terminal diagram, overall dimensions, and the compatible auxiliary-contact arrangement. It should also state whether the mechanism is a complete front-mounted assembly or requires separate brackets, couplers or wiring accessories.

For a retrofit, request a drawing that shows the mounting interface and added depth. For an automated source-transfer or interlocked feeder application, request the command truth table as well: which inputs are accepted in ON, OFF and TRIPPED states, how long a command must remain present, and what happens when the supply disappears mid-operation. These details turn a claim of compatibility into an interface that a panel builder can review.

If two mechanisms use different pickup values, operating times or reset sequences, they are not directly equivalent even when both carry the same product description. Compare the complete control function and installation requirements, not the actuator rating alone.

---

Frequently Asked Questions

---

Final Engineering Check

1. Remote closing is genuinely required, not just remote tripping
2. Reset from TRIPPED is specified explicitly if the breaker must recover from a fault trip
3. Breaker series, frame and mounting confirmed from the nameplate
4. Pickup and holding VA taken from the datasheet, not assumed
5. Combined pickup demand calculated for everything that can energise together
6. Control supply sized for combined pickup demand, with the margin required by the selected supply, project and installation conditions
7. Control voltage chosen after checking volt drop at the actual run
8. Behaviour on loss of control supply decided, with an undervoltage release if required
9. Position and trip/alarm contacts specified and wired
10. Close permissives, interlocking and anti-pumping defined in the control logic
11. Expected operations per year checked against rated endurance
12. Front clearance verified and the selector position recorded at commissioning

---

Specify the Control Chain Before the Mechanism

The mechanism is the straightforward part. What determines whether the installation works is everything around it: whether the control supply holds its voltage through a surge many times the steady load, whether the chosen coil voltage survives the distance, and whether the logic can tell a tripped breaker from an open one.

The practical order is: confirm remote closing is required, identify the breaker from its nameplate, decide which motions are needed including reset, choose the control voltage from the cable run, size the supply on combined pickup demand, then settle feedback, interlocking and endurance.

For further selection context, see the guide to circuit breaker accessories. To check an exact mechanism match, provide the breaker nameplate, front-view photograph and project requirements so the complete assembly can be reviewed before installation.

Technical References and Data Boundaries

The sources serve different purposes. IEC 60947-2:2024 provides the product-standard framework for low-voltage circuit-breakers; it is not cited as the source of the 1.25 illustrative supply allowance, typical accessory VA ranges, JUTRION control-voltage options, endurance figures, or 99% adaptation coverage. Those values come from the current JUTRION accessories page and breaker accessory power calculator. Exact electrical demand, timing, operating-voltage limits, and compatibility must come from the ordered accessory documentation.

• IEC 60947-2:2024 — Low-voltage switchgear and controlgear — Part 2: Circuit-breakers (sixth edition, September 2024; supersedes the 2016 fifth edition and its Amendment 1:2019). UL 489 applies to moulded-case circuit breakers in North American markets.
